FLAT CABLE - GRAY, COLOR CODED, SHIELDED

SPECIFICATION:
UL, VW1.†
CONDUCTORS:
#28 AWG 7/36 TINNED COPPER.
INSULATION:
PVC.
TEMPERATURE RATING:
105°C.
VOLTAGE RATING:
300 VOLTS R.M.S.
ORDERING INFORMATION:
SPECIFY JAGUAR CATALOG NO.

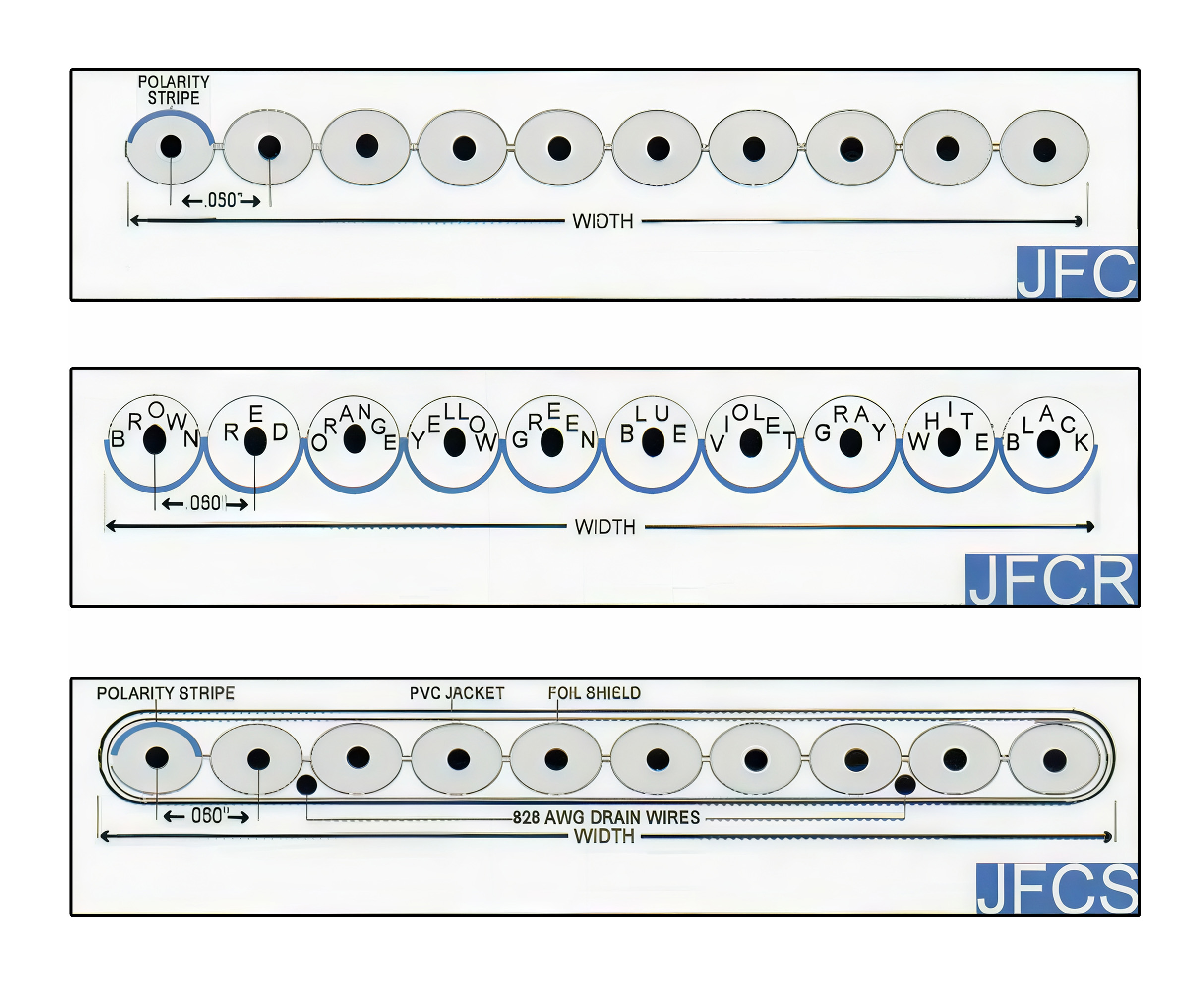

Flat Cable Configurations
Three Cable Configurations Available:
JFC SERIES: A monolithic extrusion product where the conductors are extruded parallel to each other using gray PVC insulation. A leading edge stripe indicates polarity.
JFCR SERIES: Made by thermally bonding individual color coded conductors in a parallel plane or onto a PVC substrate. Color coding is accomplished using the 10 standard RETMA (EIA) colors and repeating them in order as necessary.
JFCS SERIES: Lists a flat gray cable with an overall aluminum/mylar shield and jacket. All 3 items have .050" centers for displacement termination.
📱 Swipe left/right to view all table columns
CATALOG NO.
JAGUAR JFC		 CATALOG NO.
JAGUAR JFCR		 CATALOG NO.
JAGUAR JFCS		 NO. OF
COND.		 WIDTH - JFC/JFCR
inches		 WIDTH - JFC/JFCR
(mm)		 WIDTH - JFCS
inches		 WIDTH - JFCS
(mm)
JFC-9 JFCR-9 JFCS-9 9 .450 11,43 .520 13,21
JFC-10 JFCR-10 JFCS-10 10 .500 12,70 .570 14,48
JFC-14 JFCR-14 JFCS-14 14 .700 17,78 .770 19,56
JFC-15 JFCR-15 JFCS-15 15 .750 19,05 .820 20,83
JFC-16 JFCR-16 JFCS-16 16 .800 20,32 .870 22,10
JFC-20 JFCR-20 JFCS-20 20 1.00 25,40 1.07 27,18
JFC-24 JFCR-24 JFCS-24 24 1.20 30,48 1.27 32,26
JFC-25 JFCR-25 JFCS-25 25 1.25 31,75 1.32 33,53
JFC-26 JFCR-26 JFCS-26 26 1.30 33,02 1.37 34,80
JFC-34 JFCR-34 JFCS-34 34 1.70 43,18 1.77 44,96
JFC-37 JFCR-37 JFCS-37 37 1.85 46,99 1.95 49,53
JFC-40 JFCR-40 JFCS-40 40 2.00 50,80 2.07 52,58
JFC-50 JFCR-50 JFCS-50 50 2.50 63,50 2.57 65,28
JFC-60 JFCR-60 JFCS-60 60 3.00 76,20 3.07 77,98
JFC-64 JFCR-64 JFCS-64 64 3.20 81,28 3.30 83,82
*OTHER CONFIGURATIONS, INCLUDING PAIRS, ARE AVAILABLE. CONSULT FACTORY.
†MILITARY SPECIFICATION ITEMS ARE ALSO AVAILABLE. CONSULT FACTORY.

About Flat Cable - Gray, Color Coded, Shielded

Jaguar Industries' Flat Cable line offers three distinct configurations to meet diverse application requirements. The JFC Series features monolithic extrusion construction where conductors are extruded parallel to each other using gray PVC insulation, with a leading edge stripe for polarity indication. The JFCR Series is manufactured by thermally bonding individual color coded conductors in a parallel plane or onto a PVC substrate, utilizing the 10 standard RETMA (EIA) colors repeated in sequence as needed for easy circuit identification. The JFCS Series provides flat gray cable with an overall aluminum/mylar shield and jacket for superior EMI/RFI protection in noise-sensitive environments. All three series feature #28 AWG 7/36 stranded tinned copper conductors with PVC insulation, UL VW1 rating, 105°C temperature rating, and 300 volts R.M.S. voltage rating. The cables are designed with .050 inch centers optimized for insulation displacement connector (IDC) termination, enabling fast, reliable connections without wire stripping. Available in conductor counts from 9 to 64 conductors, with widths ranging from .450 inches (11.43mm) to 3.30 inches (83.82mm) depending on series and conductor count. The shielded JFCS Series provides slightly wider dimensions to accommodate the aluminum/mylar shield construction. These flat cables are ideal for ribbon cable applications, computer systems, data communications, internal equipment wiring, control panels, instrumentation, automated test equipment, and any application requiring organized, space-efficient multiconductor interconnections. The flat profile enables routing through tight spaces and behind panels. Custom configurations including pairs and military specification items are available. Perfect for applications requiring flexible, durable, and easily terminated multiconductor cables with excellent electrical properties and mechanical stability.
