MULTI-CONDUCTOR CABLE - PVC
| NUMBER OF CONDUCTORS |
UNSHIELDED | NOM O.D. (inches) |
FOIL SHIELD |
NOM O.D. (inches) |
FOIL SHIELD + BRAID |
NOM O.D. (inches) |
|---|---|---|---|---|---|---|
| # 24 AWG | ||||||
| 2 | JMFC24-02 | .160 | JMFB24-02 | .180 | ||
| 3 | JMFC24-03 | .170 | JMFB24-03 | .190 | ||
| 4 | JMFC24-04 | .180 | JMFB24-04 | .210 | ||
| 6 | JMFC24-06 | .200 | JMFB24-06 | .230 | ||
| 7 | JMFC24-07 | .210 | JMFB24-07 | .240 | ||
| 8 | JMFC24-08 | .220 | JMFB24-08 | .250 | ||
| 10 | JMFC24-10 | .250 | JMFB24-10 | .270 | ||
| 15 | JMFC24-15 | .270 | JMFB24-15 | .300 | ||
| 20 | JMFC24-20 | .300 | JMFB24-20 | .330 | ||
| 25 | JMFC24-25 | .330 | JMFB24-25 | .360 | ||
| 30 | JMFC24-30 | .360 | JMFB24-30 | .380 | ||
| 40 | JMFC24-40 | .400 | JMFB24-40 | .430 | ||
| 50 | JMFC24-50 | .440 | JMFB24-50 | .460 | ||
| 60 | JMFC24-60 | .470 | JMFB24-60 | .500 | ||
| # 22 AWG | ||||||
| 2 | JMUC22-02 | .170 | JMFC22-02 | .180 | JMFB22-02 | .200 |
| 3 | JMUC22-03 | .190 | JMFC22-03 | .190 | JMFB22-03 | .210 |
| 4 | JMUC22-04 | .200 | JMFC22-04 | .200 | JMFB22-04 | .220 |
| 6 | JMUC22-06 | .230 | JMFC22-06 | .230 | JMFB22-06 | .250 |
| 7 | JMUC22-07 | .240 | JMFC22-07 | .240 | JMFB22-07 | .260 |
| 8 | JMUC22-08 | .250 | JMFC22-08 | .250 | JMFB22-08 | .270 |
| 10 | JMUC22-10 | .270 | JMFC22-10 | .280 | JMFB22-10 | .300 |
| 12 | JMUC22-12 | .286 | JMFC22-12 | .292 | JMFB22-12 | .312 |
| 15 | JMUC22-15 | .310 | JMFC22-15 | .310 | JMFB22-15 | .330 |
| 20 | JMUC22-20 | .350 | JMFC22-20 | .340 | JMFB22-20 | .360 |
| 25 | JMUC22-25 | .380 | JMFC22-25 | .380 | JMFB22-25 | .390 |
| 30 | JMUC22-30 | .410 | JMFC22-30 | .400 | JMFB22-30 | .420 |
| 40 | JMUC22-40 | .460 | JMFC22-40 | .450 | JMFB22-40 | .470 |
| 50 | JMUC22-50 | .500 | JMFC22-50 | .490 | JMFB22-50 | .510 |
| 60 | JMUC22-60 | .550 | JMFC22-60 | .530 | JMFB22-60 | .600 |
| # 20 AWG | ||||||
| 2 | JMUC20-02 | .210 | JMFC20-02 | .210 | JMFB20-02 | .210 |
| 3 | JMUC20-03 | .230 | JMFC20-03 | .220 | JMFB20-03 | .260 |
| 4 | JMUC20-04 | .250 | JMFC20-04 | .240 | JMFB20-04 | .280 |
| 5 | JMUC20-05 | .270 | JMFC20-05 | .260 | JMFB20-05 | .300 |
| 7 | JMUC20-07 | .305 | JMFC20-07 | .295 | JMFB20-07 | .335 |
| 9 | JMUC20-09 | .335 | JMFC20-09 | .330 | JMFB20-09 | .360 |
| 12 | JMUC20-12 | .370 | JMFC20-12 | .374 | JMFB20-12 | .394 |
| 15 | JMUC20-15 | .400 | JMFC20-15 | .410 | JMFB20-15 | .430 |
| 20 | JMUC20-20 | .450 | JMFC20-20 | .460 | JMFB20-20 | .480 |
| 25 | JMUC20-25 | .490 | JMFC20-25 | .500 | JMFB20-25 | .520 |
| # 18 AWG | ||||||
| 2 | JMUC18-02 | .230 | JMFC18-02 | .230 | JMFB18-02 | .250 |
| 3 | JMUC18-03 | .240 | JMFC18-03 | .240 | JMFB18-03 | .280 |
| 4 | JMUC18-04 | .260 | JMFC18-04 | .260 | JMFB18-04 | .310 |
| 5 | JMUC18-05 | .285 | JMFC18-05 | .285 | JMFB18-05 | .330 |
| 7 | JMUC18-07 | .320 | JMFC18-07 | .320 | JMFB18-07 | .365 |
| 9 | JMUC18-09 | .360 | JMFC18-09 | .360 | JMFB18-09 | .395 |
| 12 | JMUC18-12 | .402 | JMFC18-12 | .402 | JMFB18-12 | .438 |
| 15 | JMUC18-15 | .450 | JMFC18-15 | .450 | JMFB18-15 | .480 |
| 20 | JMUC18-20 | .510 | JMFC18-20 | .510 | JMFB18-20 | .530 |
| 25 | JMUC18-25 | .560 | JMFC18-25 | .560 | JMFB18-25 | .620 |
| # 16 AWG | ||||||
| 2 | JMUC16-02 | .260 | JMFC16-02 | .250 | JMFB16-02 | .280 |
| 3 | JMUC16-03 | .290 | JMFC16-03 | .270 | JMFB16-03 | .320 |
| 4 | JMUC16-04 | .320 | JMFC16-04 | .290 | JMFB16-04 | .340 |
| 6 | JMUC16-06 | .370 | JMFC16-06 | .350 | JMFB16-06 | .390 |
| 8 | JMUC16-08 | .410 | JMFC16-08 | .380 | JMFB16-08 | .430 |
| 10 | JMUC16-10 | .440 | JMFC16-10 | .440 | JMFB16-10 | .470 |
| 15 | JMUC16-15 | .520 | JMFC16-15 | .490 | JMFB16-15 | .550 |
| 20 | JMUC16-20 | .630 | JMFC16-20 | .590 | JMFB16-20 | .650 |
| 25 | JMUC16-25 | .680 | JMFC16-25 | .660 | JMFB16-25 | .710 |
| 30 | JMUC16-30 | .730 | JMFC16-30 | .710 | JMFB16-30 | .760 |
| 40 | JMUC16-40 | .880 | JMFC16-40 | .890 | JMFB16-40 | .910 |
| 50 | JMUC16-50 | .960 | JMFC16-50 | .970 | JMFB16-50 | .990 |
| # 14 AWG | ||||||
| 2 | JMUC14-02 | .400 | JMFC14-02 | .410 | JMFB14-02 | .430 |
| 3 | JMUC14-03 | .430 | JMFC14-03 | .430 | JMFB14-03 | .450 |
| 4 | JMUC14-04 | .480 | JMFC14-04 | .490 | JMFB14-04 | .510 |
| 5 | JMUC14-05 | .520 | JMFC14-05 | .520 | JMFB14-05 | .550 |
| 7 | JMUC14-07 | .580 | JMFC14-07 | .590 | JMFB14-07 | .610 |
| 9 | JMUC14-09 | .640 | JMFC14-09 | .640 | JMFB14-09 | .660 |
| 12 | JMUC14-12 | .710 | JMFC14-12 | .710 | JMFB14-12 | .770 |

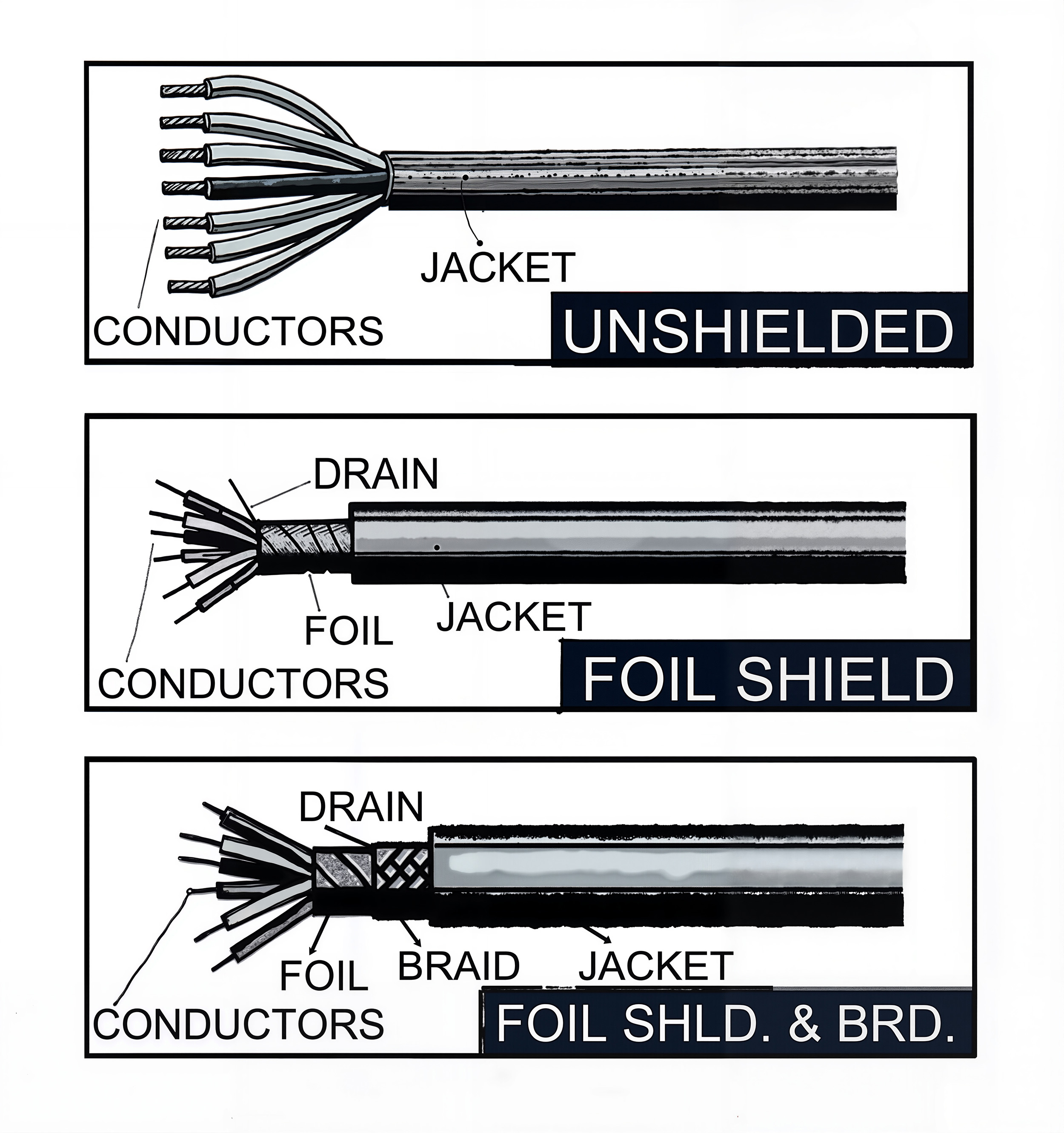

About Multi-Conductor Cable - PVC
Jaguar Industries' Multi-Conductor Cable with PVC insulation provides versatile wiring solutions for control, audio, computer circuits, and similar applications. These cables feature PVC color coded insulated conductors made from stranded tinned copper for excellent flexibility and conductivity. Available in three configurations to meet diverse shielding requirements: unshielded for general applications, foil shielded with suitable drain wire for basic EMI protection, and foil shield with braid featuring minimum 65% tinned copper braid coverage for enhanced electromagnetic shielding. All cables are supplied with a grey PVC jacket for durability and professional appearance. Meeting UL and CSA AWM specifications, these cables operate at 80°C (90°C for CSA rating) with voltage ratings of 300 VOLTS for AWG 24-16 and 600 VOLTS RMS for AWG 14. Available in AWG 24, 22, 20, 18, 16, and 14 sizes with conductor counts ranging from 2 to 60 conductors, providing extensive configuration options. Each configuration includes precise nominal O.D. specifications for accurate system design. Ideal for industrial automation, audio/video installations, instrumentation, data transmission, control systems, and commercial electronic applications requiring reliable multi-conductor connectivity with flexible shielding options.
