MULTI-PAIR CABLE - PVC

About Multi-Pair Cable - PVC

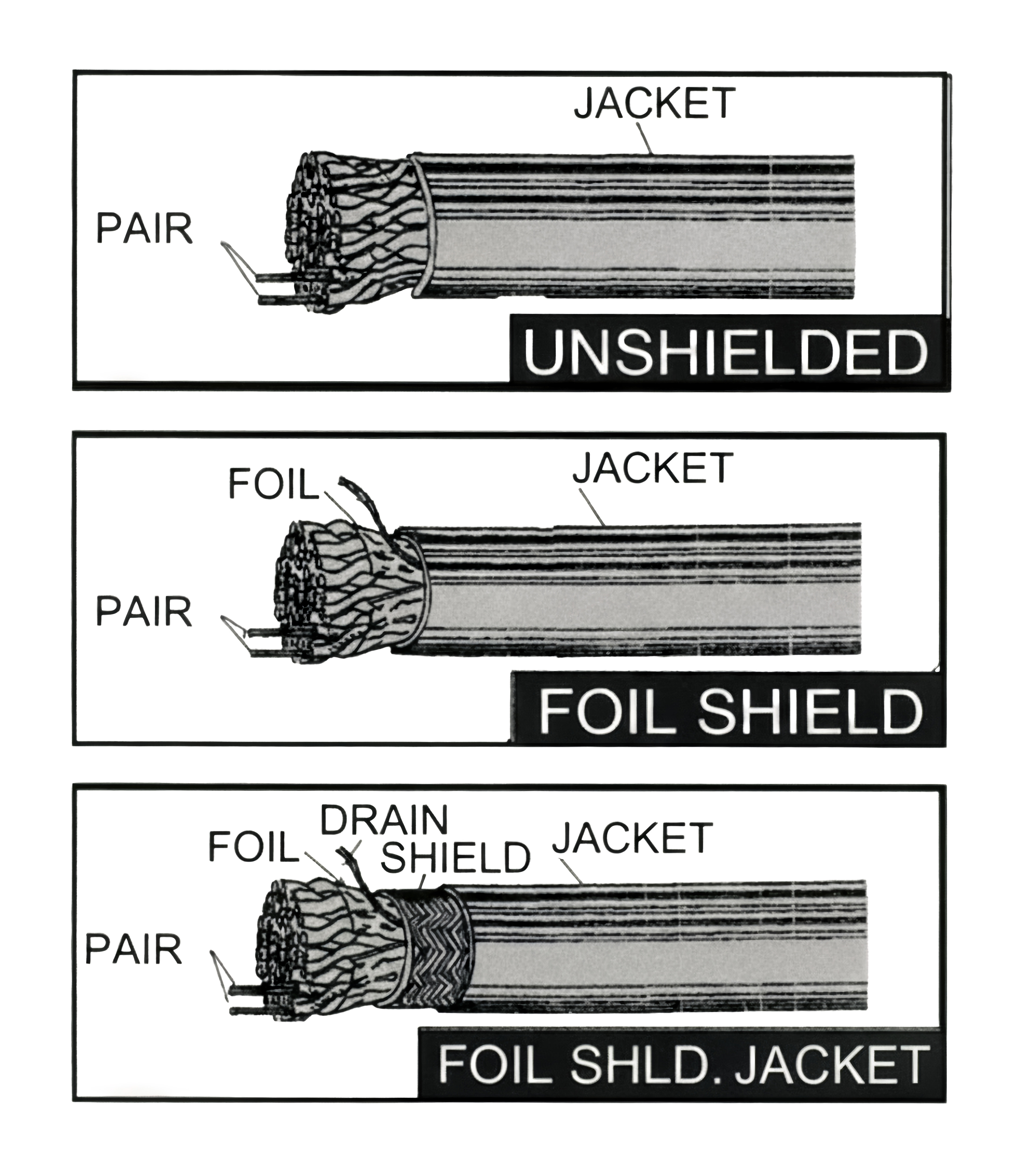

Jaguar Industries' Multi-Pair Cable with PVC insulation delivers reliable twisted pair wiring solutions for control, audio, computer circuits, and similar applications requiring balanced signal transmission. Featuring PVC color coded insulated conductors made from stranded tinned copper, these cables are designed for optimal signal integrity and noise rejection. Available in three configurations: unshielded for general applications, foil shielded with suitable drain wire for basic EMI protection, and foil shield with braid featuring minimum 65% braid coverage for enhanced electromagnetic shielding. All cables are supplied with a grey jacket for professional appearance and durability. Meeting UL and CSA AWM specifications, these paired cables operate at 80°C (90°C for CSA rating) with 300 VOLTS rating. The 24 AWG series offers foil shield and foil shield + braid options with 14 pair counts (2, 3, 4, 5, 6, 7, 9, 12, 15, 19, 27, 37, 48, 60 pairs), while the 22 AWG series includes all three configurations (unshielded, foil shield, and foil shield + braid) with the same 14 pair counts. The 20 AWG series provides all three configurations with 14 pair counts, and the 18 AWG series offers all three configurations with 8 pair counts (2, 3, 6, 9, 12, 15, 19, 27 pairs). Each configuration includes precise nominal O.D. specifications for accurate installation planning.

The twisted pair construction provides balanced transmission characteristics, making these cables ideal for audio systems, telephone systems, data communications, instrumentation wiring, security systems, building automation, industrial control networks, and any application requiring noise immunity through differential signaling. The paired configuration ensures superior common-mode noise rejection compared to single conductor cables, while the multiple shielding options allow system designers to select the appropriate level of EMI/RFI protection for their specific application requirements.

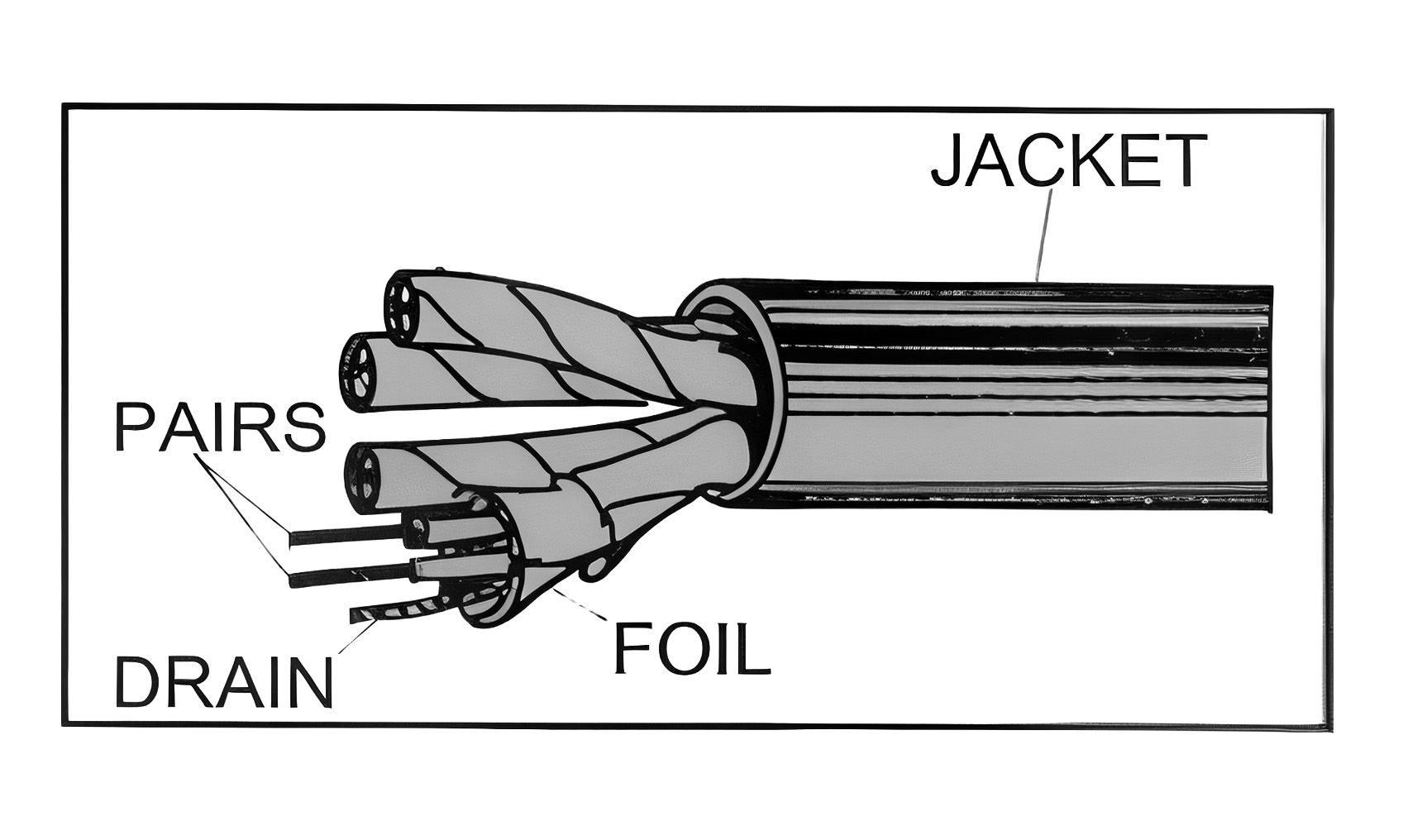

Individually Foil Shielded Pairs: Our Multi-Pair, Individually Foil Shielded PRS construction represents a premium cable solution where each twisted pair is individually shielded with foil and drain wire before being combined under a common jacket. This advanced construction provides superior crosstalk rejection and EMI protection compared to overall shielded designs, making it ideal for high-density signal applications, precision instrumentation, audio mixing consoles, broadcast equipment, medical devices, and industrial control systems requiring maximum signal isolation between pairs. Available in 22 AWG (10 pair counts: 2, 3, 4, 6, 9, 11, 15, 19, 27, 51) and 18 AWG (7 pair counts: 2, 3, 4, 6, 9, 11, 15), each configuration includes precise nominal O.D. specifications. The individually shielded construction ensures that noise on one pair cannot couple to adjacent pairs, critical for applications mixing analog and digital signals or requiring exceptionally low crosstalk. Custom constructions available through our factory sales team to meet specialized requirements for demanding applications in telecommunications, professional audio, data acquisition, process control, and other high-performance signal transmission environments.
