DESCRIPTION:

FLAT BRAID WOVEN FROM TINNED COPPER MEETING QQ-W-343E AND ASTM-B-33 SPECIFICATIONS.*

SPECIFICATION:

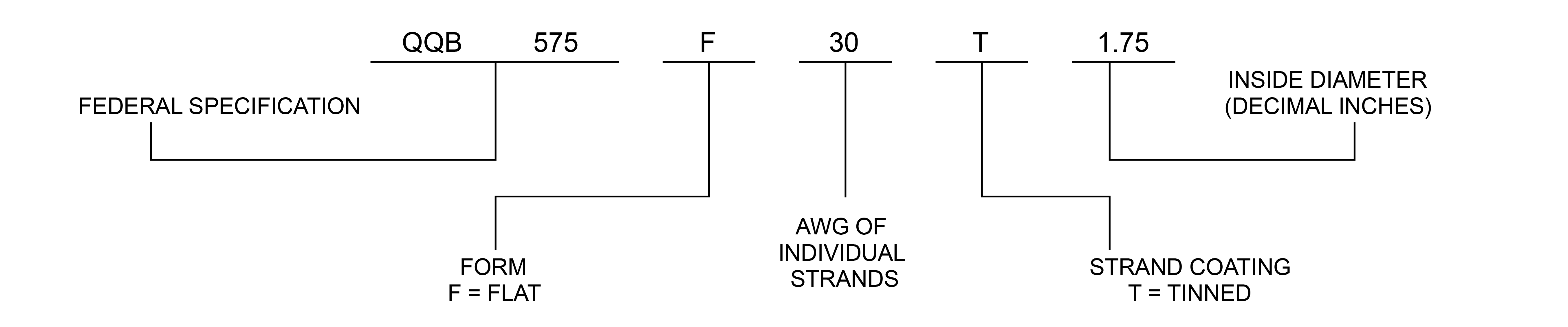

MIL-SPEC QQB-575, FORMED TO OFFER A 90% MINIMUM COVERAGE WHEN PLACED OVER A MANDREL REPRESENTING THE NOMINAL I.D. OF THE PRODUCT (70% MINIMUM FOR .078" AND SMALLER I.D.).

ORDERING INFORMATION:

SPECIFY JAGUAR CATALOG NO.

CATALOG NO.	NOM. FLAT WIDTH (inches)	NOMINAL THICKNESS	AWG IND. STRAND	NO. OF CARRIERS	TOTAL STRANDS	NOM. CMA	APPROX. AWG
JTFB-221†	1/40 (.025)	.015	36	8	8	200	27
JTFB-222†	1/32 (.031)	.020	36	16	16	400	24
JTFB-223	3/64 (.047)	.020	36	24	24	600	22
JTFB-224†	3/32 (.094)	.020	36	16	48	1200	19
JTFB-225	1/16 (.063)	.020	36	24	48	1200	19
JTFB-226†	7/64 (.109)	.020	36	16	64	1800	18
JTFB-229	1/8 (.125)	.020	36	24	72	1800	18
JTFB-229/1	5/32 (.156)	.020	36	24	96	2400	16
JTFB-230	3/16 (.188)	.020	36	24	120	3000	15
JTFB-231	1/4 (.250)	.030	36	24	168	4200	14
JTFB-231/1	1/4 (.250)	.030	36	24	240	6000	12
JTFB-231/2	9/32 (.281)	.030	36	24	312	7630	11
JTFB-232†	3/8 (.375)	.030	36	48	288	7200	12
JTFB-233/2†	1/2 (.500)	.030	36	48	384	9600	10
JTFB-233	5/8 (.625)	.030	36	48	384	9600	10
JTFB-233/1†	5/8 (.625)	.035	36	48	528	13200	9
JTFB-234	3/4 (.750)	.040	36	48	864	20800	7
JTFB-235†	1 (1.00)	.045	36	48	864	20800	7
JTFB-236†	13/16 (.813)	.045	36	48	912	22800	7
JTFB-236/1†	7/8 (.875)	.050	36	48	1056	26400	6
JTFB-237†	3/4 (.750)	.040	36	48	1608	40200	4
JTFB-238†	1-5/8 (1.63)	.080	36	48	4032	100800	1/0
JTFB-239	1-3/8 (1.38)	.050	30	48	336	33700	5
JTFB-240	1-1/2 (1.50)	.060	30	48	528	53064	3
JTFB-241†	1-3/4 (1.75)	.080	30	48	1248	125424	2/0
JTFB-242†	2 (2.00)	.120	30	48	1436	154368	3/0
JTFB-242/4†	3 (3.00)	.200	30	48	2256	225000	4/0

CATALOG
NO.

NOM. FLAT
WIDTH (inches)

NOMINAL
THICKNESS

AWG IND.
STRAND

NO. OF
CARRIERS

TOTAL
STRANDS

NOM.
CMA

APPROX.
AWG

JTFB-221†

1/40 (.025)

.015

200

JTFB-222†

1/32 (.031)

.020

400

JTFB-223

3/64 (.047)

.020

600

JTFB-224†

3/32 (.094)

.020

1200

JTFB-225

1/16 (.063)

.020

1200

JTFB-226†

7/64 (.109)

.020

1800

JTFB-229

1/8 (.125)

.020

1800

JTFB-229/1

5/32 (.156)

.020

2400

JTFB-230

3/16 (.188)

.020

120

3000

JTFB-231

1/4 (.250)

.030

168

4200

JTFB-231/1

1/4 (.250)

.030

240

6000

JTFB-231/2

9/32 (.281)

.030

312

7630

JTFB-232†

3/8 (.375)

.030

288

7200

JTFB-233/2†

1/2 (.500)

.030

384

9600

JTFB-233

5/8 (.625)

.030

384

9600

JTFB-233/1†

5/8 (.625)

.035

528

13200

JTFB-234

3/4 (.750)

.040

864

20800

JTFB-235†

1 (1.00)

.045

864

20800

JTFB-236†

13/16 (.813)

.045

912

22800

JTFB-236/1†

7/8 (.875)

.050

1056

26400

JTFB-237†

3/4 (.750)

.040

1608

40200

JTFB-238†

1-5/8 (1.63)

.080

4032

100800

1/0

JTFB-239

1-3/8 (1.38)

.050

336

33700

JTFB-240

1-1/2 (1.50)

.060

528

53064

JTFB-241†

1-3/4 (1.75)

.080

1248

125424

2/0

JTFB-242†

2 (2.00)

.120

1436

154368

3/0

JTFB-242/4†

3 (3.00)

.200

2256

225000

4/0

About Tinned Copper Flat Braid

Jaguar Industries' Tinned Copper Flat Braid delivers superior EMI/RFI shielding and grounding performance in a flat, flexible configuration. Manufactured from tinned copper meeting QQ-W-343E and ASTM-B-33 specifications, our flat braids conform to MIL-SPEC QQB-575, engineered to provide 90% minimum coverage when placed over a mandrel representing the nominal I.D. of the product (70% minimum for .078" and smaller I.D.). Available in an extensive range of nominal flat widths from 1/40" (0.025") to 3" (3.00"), with nominal thickness options from .015 to .200, our flat braids feature AWG 30 and 36 individual strands in various carrier configurations (8, 16, 24, or 48 carriers). Each specification includes detailed total strand counts, nominal CMA (Circular Mil Area) values, and approximate AWG equivalents ranging from 27 AWG to 4/0 AWG. Perfect for flexible grounding straps, cable shielding, EMI shielding assemblies, electrical bonding jumpers, and custom electrical interconnects in aerospace, military, industrial, and high-reliability electronic applications. Silver plated and bare copper variations available upon request for specialized requirements.
